This is the 2.4 GHz version of our parasitic disk helix, this is also LHCP to match the LHCP patch antennas on the Phantom Vision 2.  Gain is between 9 and 10 dBi, despite the small form factor.

The antenna allows a maximum distance of 1.3km in FPV mode with the Phantom going away from you.

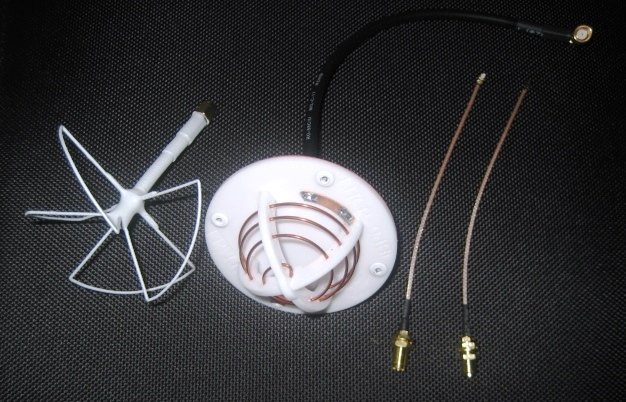

For best performance, a matching LHCP pinwheel can be ordered.

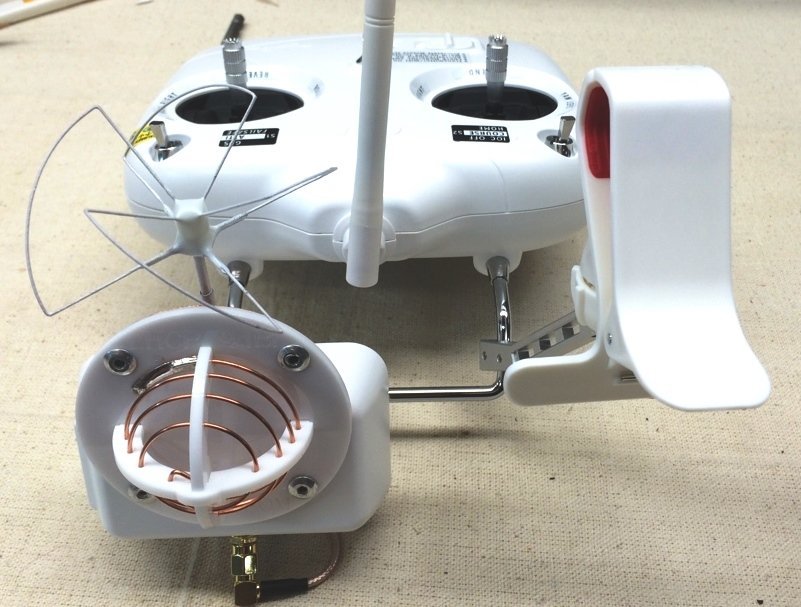

This is the latest addition to our CP Helix series. Gain is a healthy 9dBi, but what makes it shine is small form factor. You are not going to find a smaller form factor CP antenna of this gain. This makes it well suited for feeding a parabolic dish or, when space is a problem, or a handheld application is needed, as is the case of the wi-fi repeater on a Phantom Vision 2.

*Important*


If you choose a LHCP directional antenna like this one,

you can use it with the STOCK PV2 (which mounts LHCP antennas).

If you want to use this for analog video trasmission please select a LHCP omnidirectional antenna like our LHCP pinwheel to be on the trasmitting side.

Also this antenna needs a U.FL to RP-SMA FEMALE  extension cable which we do carry in our store.

Diameter : 7cm (2 3/4″)

Height: 4cm (1 1/2″)

Weight: 50gr
