5.8GHz FPV Antennas
Product Carousel Tabs
RHCP 5.8 GHz Pentalobe V.2 1.9dbi
I developed this new Pentalobe V.2, which is an evolution not a revolution of a OMM optimized pinwheel. WIth slight more pitch angle an an extra lobe, gain and circularity are improved. Also this antenna is a better match to 50ohm compared to the older pentalobe.
Note: Please select the plug you want before adding the product to cart.
RHCP 5.8 GHZ tx Pinwheel 90° SMA
A single tx pinwheel for 5.8Ghz. This antenna comes only with a 90° connector, for straight connector please select the proper item in the list. This one works very well with our 5.8 helicals….
After much testing and reports by customers I can say it outperforms most of the cp antennas out there.
Note: Please select the plug you want before adding the product to cart.

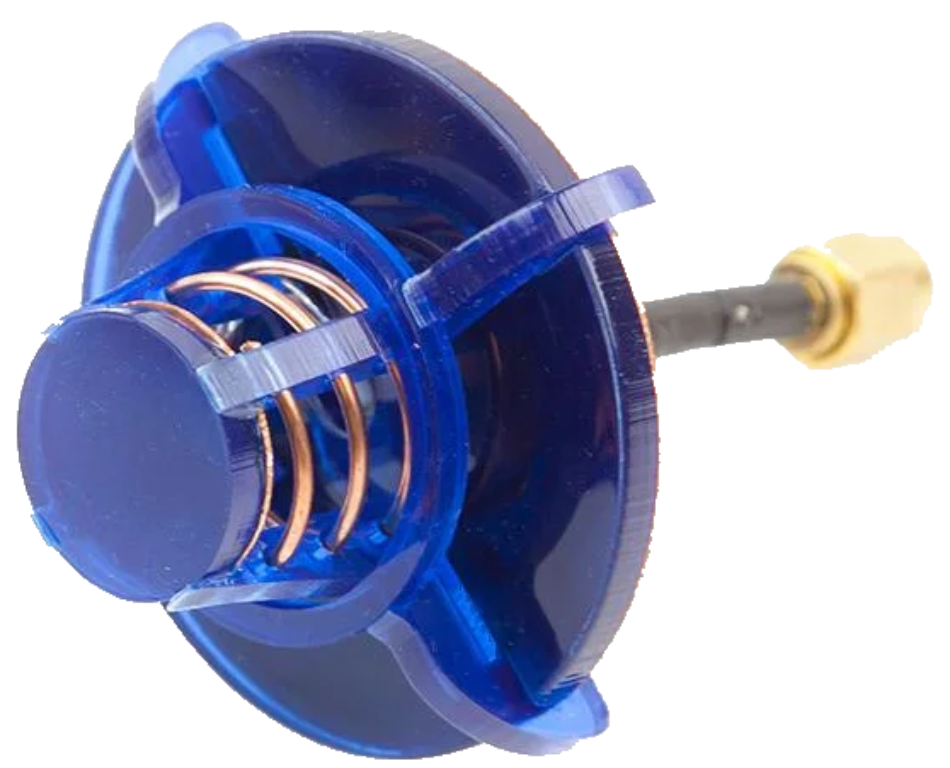

RHCP 5.8GHz Parasitic Disk Helix 9.3dBi-Fatshark mount- For 3-4km racing quad
This is a new development for FPV antennas. It’s a 2.75 turns helix, the turns are more closely spaced than a conventional helix, and it uses a parasitic disk to achieve higher gain (9.3dBi) and better axial ratio compared to a regular helix.
The result is a very compact moderately directional antenna with very good efficiency, and same gain as a 3 turns conventional helix. The total length is less than half that of a comparable 3 turns helix, which is slightly more than a linear patch antenna which shines if attached directly to your FPV goggles. The ease of aiming this is unbelievable it feels almost as an omni when flying your course nearby and it becomes slightly directional with very wide beam width when going far. We have taking our racing quad to 3-4km with a 200mw VTX and this antenna.
Note: Please select the plug you want before adding the product to cart.
5.8GHz Premium Combo
This antenna combo is similar to our pupular “Bundle and Save kit”, the only difference is the transmit antenna is a Pentalobe version 2 antenna.
The Pentalobe offers extra gain and world class quality. You will experience video transmission with no lines and blemishes.
Chat with us on Facebook reguarding your upgrades
https://www.facebook.com/groups/1577806512440602/
and also here
https://www.facebook.com/groups/396477587202912/
Note: Please select the plug you want before adding the product to cart.
RHCP 5.8GHz Parasitic Disk Helix 9.3dBi-Fatshark mount- For 3-4km racing quad
This is a new development for FPV antennas. It’s a 2.75 turns helix, the turns are more closely spaced than a conventional helix, and it uses a parasitic disk to achieve higher gain (9.3dBi) and better axial ratio compared to a regular helix.
The result is a very compact moderately directional antenna with very good efficiency, and same gain as a 3 turns conventional helix. The total length is less than half that of a comparable 3 turns helix, which is slightly more than a linear patch antenna which shines if attached directly to your FPV goggles. The ease of aiming this is unbelievable it feels almost as an omni when flying your course nearby and it becomes slightly directional with very wide beam width when going far. We have taking our racing quad to 3-4km with a 200mw VTX and this antenna.
Note: Please select the plug you want before adding the product to cart.
LHCP 1.2GHz Pinwheel
Same gain and performance as our famouse 1.7 dBi Pinwheel, but this is LEFT HAND CIRCULAR POLARIZED (LHCP).
It’s only to be used with other LHCP antennas, and will not work with other brand RHCP offerings.
Note: Please select the plug you want before adding the product to cart.
RHCP 5.8 GHZ tx Pinwheel 90° SMA
A single tx pinwheel for 5.8Ghz. This antenna comes only with a 90° connector, for straight connector please select the proper item in the list. This one works very well with our 5.8 helicals….
After much testing and reports by customers I can say it outperforms most of the cp antennas out there.
Note: Please select the plug you want before adding the product to cart.
5.8GHz Premium Combo
This antenna combo is similar to our pupular “Bundle and Save kit”, the only difference is the transmit antenna is a Pentalobe version 2 antenna.
The Pentalobe offers extra gain and world class quality. You will experience video transmission with no lines and blemishes.
Chat with us on Facebook reguarding your upgrades
https://www.facebook.com/groups/1577806512440602/
and also here
https://www.facebook.com/groups/396477587202912/
Note: Please select the plug you want before adding the product to cart.
12V dual lead battery 3000mah with charger
This is a purpose-built 12v li-po battery (nominal 11.1), 3000mah, if features 2 barrel plugs 2.1mm outer and 0.7mnm inner diameter in order to power both sunans boosters (2.4GHz and 5.8GHz) it’s very tiny and has a on-off switch, it will give a reliable  2 hour autonomy powering the sunhans 2.5w booster. alone or 1 hour+ powering both 5.8 and 2.4ghz boosters.
It was selected for light weight (115gr) in order to be used on the transmitter. This means that it needs to be charged after 2 flights.
The included charger provides 1A charging current this means that it will take 3 hours to charge it from completely empty and in most cases a couple of hours to top-up.

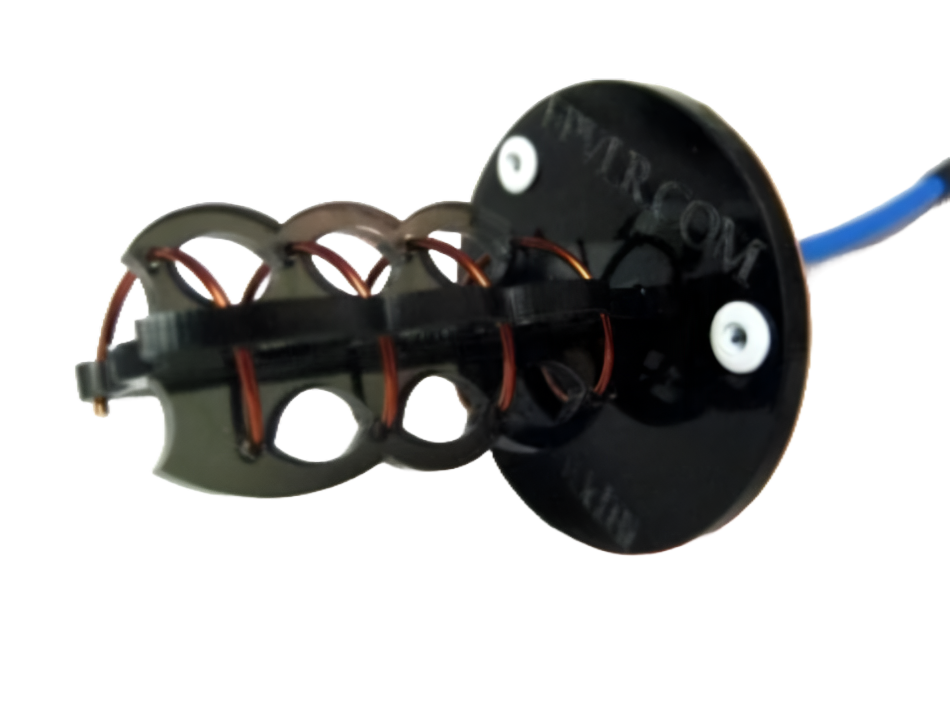

RHCP 12 turn 5.8 helical long range antenna
This is a 12 turn antenna for very long flights on the 5.8 frequency.
I have personally gone 10.8Km with this antenna and a 200mw foxtec tx (rc305 rx), using a pinwheel on the tx side.
Note: Please select the plug you want before adding the product to cart.
Max Range Series LHCP 2.4GHz Pentalobe V.2
This 2 dBi pentalobe Version 2 is the highest quality omnidirectional  CP antenna you could find of any brand at any price point.
Better axial ratio and favorable pattern will translate in extra 10% range over our Pinwheel antennas.
RHCP 1.2-1.3-900 pinwheel set (CRASHPROOF)
This set is good for 1.2-1.3 and even 900mhz frequencies. All you need to do is specify the correct frequency and it will be sized accordingly.
One antenna comes with 90° connector, the other one comes with a straight connector. If you need both with 90° connectors please select 2 pcs of the single antenna.
All 1.2 pinwheels now incorporate our well proven “CRASHPROOF” system, which consists of a CNC cut copper cross with a hole in the middle. The coaxial cable is inserted in the cross and soldered to it. The “petals” are then soldered to the 4 leads of the cross. A generous amount of epoxy is then poured over and around this solder joint and than the wires are “dipped” in black plasti-dip which is RF transparent  and protects the copper plating of the steel wires.
Please specify Frequency/Channel  under order notes in checkout.
e steel wires.
Note: Please select the plug you want before adding the product to cart.

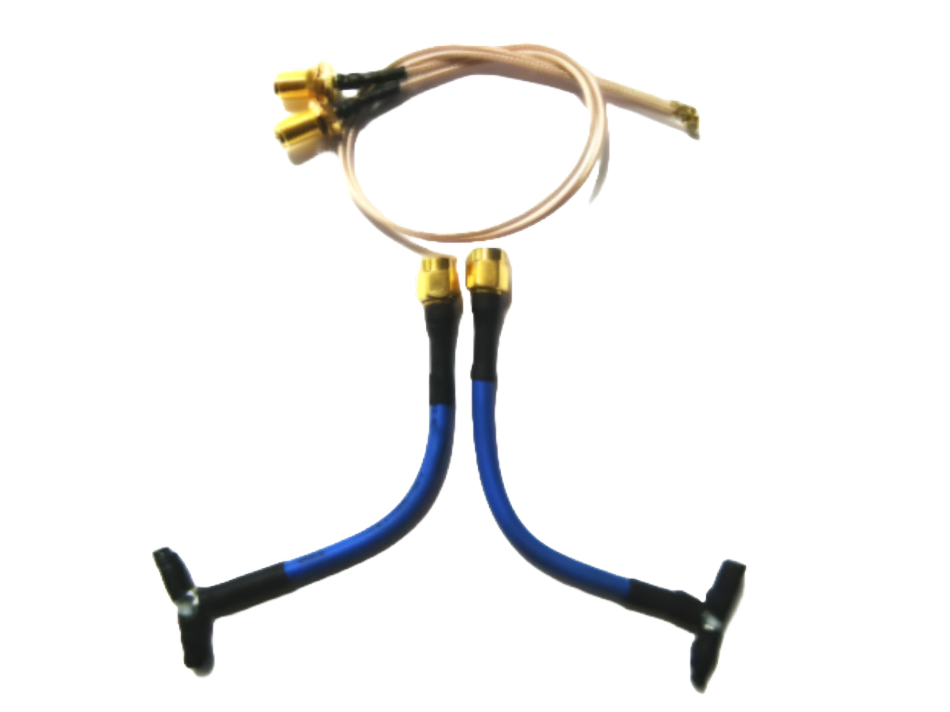

MMCX to RP-SMA FEMALE adapter cable – New Long SMA connector.
This cable is used to replace the internally connected P2V+ antennas going to the Lightbridge unit inside the Phantom V2+.
It has a mmcx connector on one end and a rp-sma female on the other, allowing you to mount any external antennas to the P2V+.
Products Carousel
Best Selling Products
-
5.8GHz FPV AntennasRHCP 5.8 GHZ tx Pinwheel 90° SMA
$30.00 This product has multiple variants. The options may be chosen on the product page -
5.8GHz FPV Antennas, Phantom 2 (non vision)5.8GHz Premium Combo
$109.00 This product has multiple variants. The options may be chosen on the product page -
2.4GHz FPV Antennas, Phantom 2 Vision +LHCP 2.4GHz Pinwheel
$34.99 This product has multiple variants. The options may be chosen on the product page
-
5.8GHz FPV AntennasRHCP 12 turn 5.8 helical long range antenna
$42.00 This product has multiple variants. The options may be chosen on the product page
-
1.2-1.3GHz FPV AntennasRHCP 1.2-1.3-900 pinwheel set (CRASHPROOF)
$70.00 This product has multiple variants. The options may be chosen on the product page -
5.8GHz FPV AntennasXiaomi Mi 5.8Ghz antenna kit
$99.00 This product has multiple variants. The options may be chosen on the product page
-
5.8GHz FPV Antennas5.8 GHZ 4.25 turns FATSHARK series Helix- Long Range for racing quad
$39.00$49.00This product has multiple variants. The options may be chosen on the product page -
1.2-1.3GHz FPV AntennasRHCP 1.2-1.3 Ghz Pinwheel 90° SMA
$3,499.00 This product has multiple variants. The options may be chosen on the product page
Batteries, Cable Connectors & Booster Amps
Trending Products
-
5.8GHz FPV AntennasRHCP 5.8 GHZ 8.25 turns Helical
$39.00 This product has multiple variants. The options may be chosen on the product page
-
5.8GHz FPV AntennasRHCP 5.8 GHZ PinWheel set 1.7dBi
$60.00 This product has multiple variants. The options may be chosen on the product page -
5.8GHz FPV AntennasRHCP 5.8 GHZ 4 -1/4 turns Helix
$35.00 This product has multiple variants. The options may be chosen on the product page -
5.8GHz FPV Antennas
RHCP 5.8 GHZ tx Pinwheel 90° SMA
$30.00 This product has multiple variants. The options may be chosen on the product page
-
5.8GHz FPV Antennas
RHCP 12 turn 5.8 helical long range antenna
$42.00 This product has multiple variants. The options may be chosen on the product page -
5.8GHz FPV Antennas
5.8 GHZ 4.25 turns FATSHARK series Helix- Long Range for racing quad
$39.00$49.00This product has multiple variants. The options may be chosen on the product page -
5.8GHz FPV AntennasRHCP 5.8GHz Parasitic Disk Helix 9.3dBi-Fatshark mount- For 3-4km racing quad
$35.00$39.00This product has multiple variants. The options may be chosen on the product page -
5.8GHz FPV AntennasLHCP 5.8GHz Pinwheel
$30.00 This product has multiple variants. The options may be chosen on the product page
Bestsellers
Top Categories this Month
Recommended Products
LHCP 6.5 Turns 12.9dBi
This antenna is LHCP and has a gain of 12.9dBi .
Very popular among Phantom Vision 2 pilots. Mounting it on the wi-fi extender,it allows 1.5km + range with the stock Phantom antennas.It needs to be aimed quite accurately to reach that range.
If used with regular FPV equipment it needs a LHCP pinwheel  on the pantom camera to reach twice that range.
LHCP 2.4 GHz Parasitic disk helix
This is the 2.4 GHz version of our parasitic disk helix, this is also LHCP to match the LHCP patch antennas on the Phantom Vision 2. Â Gain is between 9 and 10 dBi, despite the small form factor.
The antenna allows a maximum distance of 1.3km in FPV mode with the Phantom going away from you.
For best performance, a matching LHCP pinwheel can be ordered.
LHCP 2.4GHz Half Sphere Helix 9 dBi
This is the latest addition to our CP Helix series. Gain is a healthy 9dBi, but what makes it shine is small form factor. You are not going to find a smaller form factor CP antenna of this gain. This makes it well suited for feeding a parabolic dish or, when space is a problem, or a handheld application is needed, as is the case of the wi-fi repeater on a Phantom Vision 2.
Â
*Important*
Â
If you choose a LHCP directional antenna like this one,
you can use it with the STOCK PV2 (which mounts LHCP antennas).
If you want to use this for analog video trasmission please select a LHCP omnidirectional antenna like our LHCP pinwheel to be on the trasmitting side.
Also this antenna needs a U.FL to RP-SMA FEMALE Â extension cable which we do carry in our store.
Diameter : 7cm (2 3/4″)
Height: 4cm (1 1/2″)
Weight: 50gr
RHCP 5.8 GHZ 8.25 turns Helical
This is a high gain 10-12dbi 8.25 turns helical for the 5.8 frequency. The antenna will be tuned to your exact channel’s frequency. This will require a matching pinwheel antenna for 5.8 ghz for best performance, but can be used with spironets, CL and SPW as well.
Please specify FrequencyChannel under order notes in checkout.
Note: Please select the plug you want before adding the product to cart.
RHCP 5.8 GHZ PinWheel set 1.7dBi
This antenna set works quite well, and it  does provide improved video between 1-2 km on Hobbyking/Foxtec system (choose RP-SMA male connectors), or on Fatshark/ImmersionRC systems (choose SMA maleconnectors)
Range may vary, one  customer claimed a record distance of 5.5km with just fatshark attitude + 600mw irc transmitter and this pair of antennas.
These pinwheels can be used also with our 8 turn Helical for ranges up to 10KM* (400mw foxtec tx + rc305 rx)
Note: Please select the plug you want before adding the product to cart.
Â
RHCP 5.8 GHZ 4 -1/4 turns Helix
This Helix has a lower gain, as compared to our 8 turn one, and can be used in  place of a patch for Circular Polarization. with a gain between 6.5-8 dbi , it can be used without a tracker, just aim in the general direction of flight! It can be also made with a 90° connector for mounting to the fatshark and aim it by facing the model.
Note: Please select the plug you want before adding the product to cart.
RHCP 5.8 GHz Pentalobe V.2 1.9dbi
I developed this new Pentalobe V.2, which is an evolution not a revolution of a OMM optimized pinwheel. WIth slight more pitch angle an an extra lobe, gain and circularity are improved. Also this antenna is a better match to 50ohm compared to the older pentalobe.
Note: Please select the plug you want before adding the product to cart.
RHCP 5.8 GHZ tx Pinwheel 90° SMA
A single tx pinwheel for 5.8Ghz. This antenna comes only with a 90° connector, for straight connector please select the proper item in the list. This one works very well with our 5.8 helicals….
After much testing and reports by customers I can say it outperforms most of the cp antennas out there.
Note: Please select the plug you want before adding the product to cart.
RHCP 12 turn 5.8 helical long range antenna
This is a 12 turn antenna for very long flights on the 5.8 frequency.
I have personally gone 10.8Km with this antenna and a 200mw foxtec tx (rc305 rx), using a pinwheel on the tx side.
Note: Please select the plug you want before adding the product to cart.
RHCP 5.8GHz Parasitic Disk Helix 9.3dBi-Fatshark mount- For 3-4km racing quad
This is a new development for FPV antennas. It’s a 2.75 turns helix, the turns are more closely spaced than a conventional helix, and it uses a parasitic disk to achieve higher gain (9.3dBi) and better axial ratio compared to a regular helix.
The result is a very compact moderately directional antenna with very good efficiency, and same gain as a 3 turns conventional helix. The total length is less than half that of a comparable 3 turns helix, which is slightly more than a linear patch antenna which shines if attached directly to your FPV goggles. The ease of aiming this is unbelievable it feels almost as an omni when flying your course nearby and it becomes slightly directional with very wide beam width when going far. We have taking our racing quad to 3-4km with a 200mw VTX and this antenna.
Note: Please select the plug you want before adding the product to cart.
LHCP 5.8GHz Pinwheel
This is the LHCP version of the popular 5.8GHz pinwheel.
It is compatible with the white DJI antennas which are LHCP,
Always make sure you do not mix LHCP and RHCP antennas,
as that would result in terrible performance.
Note: Please select the plug you want before adding the product to cart.
RHCP 2.4GHZ 14.5db 12 turn Helical
This antenna is a fantastic long range antenna. Our customers have reached great distances with exceptional video quality, even at low altitude.
10km at 10 meters altitutde is possible with this antenna and a matching Pinwheel on the plane, or 20-30 km are possible with much more altitude (around 1000 meters)
Click on the picture to select your exact frequency and connector before adding to cart.
Note: Please select the plug you want before adding the product to cart.
RHCP Pinwheel 2.4ghz 90° SMA (CRASHPROOF)
Custom made CP Pinwheel (SPW) antenna . These antennas are individually tuned to your frequency. They feature 1.2:1 SWR Â , gain 1.7 dbic.
These include the new CRASHPROOF soldering system, with a cnc cut copper cross with a hole in the middle, soldered around the coax sheeting. This will make it able to withstand most crashes.
These outperform all CL type antennas, as they have higher gain and better multipath rejection.
Note: Please select the plug you want before adding the product to cart.
RHCP 2.4ghz 7.5-9db Helical 4.25 turns
This is a great light and compact everyday antenna. With 7.5- 9 dbi gain it’s a great compromise when space is a problem. The antenna has been tested to 14km* (*using 500mw lawmate tx and lawmate rx with saw filter mod), and so it should be good for most pilots who just need to do Aerial Video and/or Photography at distances around 8-10 km in total safety
Note: Please select the plug you want before adding the product to cart.
RHCP 2.4 Ghz 6.25 turn Helix
For everyday flying on 2.4 we recommend this antenna, it’s good for 15-20 km and it’s very nice with a tracker.
The only antenna you’ll ever need (plus a pinwheel or a pentalobe on the plane).
Note: Please select the plug you want before adding the product to cart.
RHCP 2.4 pinwheel set (crashproof)
Buy them as a set and SAVE. One pinwheel comes with 90° connector, the other with a straight connector. If you need both 90° connectors please choose 2 pcs of the single antenna. Please specify Frequency / Channel  under order notes in checkout.
This set will incorporate the new CRASHPROOF system, which consists of a copper cross cnc cut with a hole in the middle, soldered around the coax sheeting and to the bottom legs of the antenna. This will allow the antenna to withstand most crashes with little to no damage.
Guaranteed swr between 1.2:1 – 1.3:1 on chosen channel.
Note: Please select the plug you want before adding the product to cart.
RHCP 1.2-1.3-900 pinwheel set (CRASHPROOF)
This set is good for 1.2-1.3 and even 900mhz frequencies. All you need to do is specify the correct frequency and it will be sized accordingly.
One antenna comes with 90° connector, the other one comes with a straight connector. If you need both with 90° connectors please select 2 pcs of the single antenna.
All 1.2 pinwheels now incorporate our well proven “CRASHPROOF” system, which consists of a CNC cut copper cross with a hole in the middle. The coaxial cable is inserted in the cross and soldered to it. The “petals” are then soldered to the 4 leads of the cross. A generous amount of epoxy is then poured over and around this solder joint and than the wires are “dipped” in black plasti-dip which is RF transparent  and protects the copper plating of the steel wires.
Please specify Frequency/Channel  under order notes in checkout.
e steel wires.
Note: Please select the plug you want before adding the product to cart.
